condenser

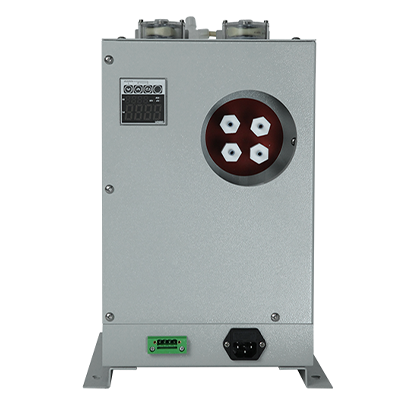

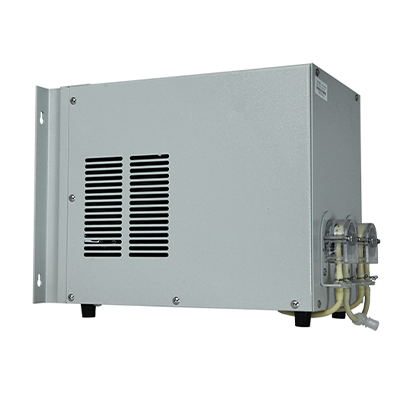

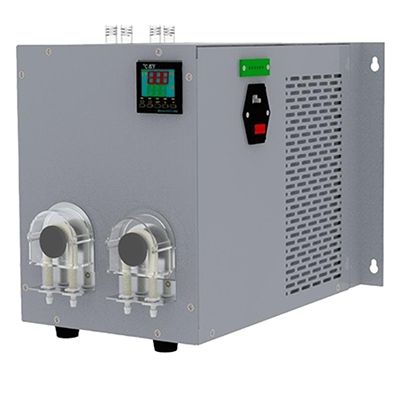

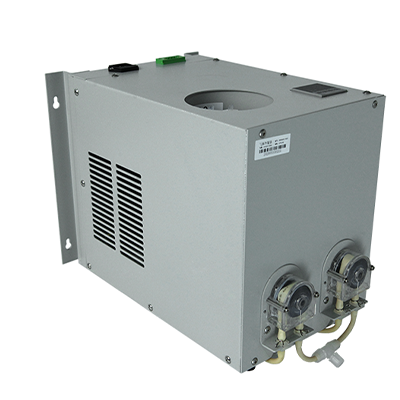

SKA/ CIMS-LN-A type CEMS condenser is A dewatering condenser specially developed for CEMS flue gas /VOCs continuous monitoring gas pretreatment. It adopts compressor refrigeration, independent dual channel dehydration, PID high-precision control and double fault alarm output. The product is especially suitable for large gas flow, high flue gas humidity, high ambient temperature in summer, and extremely low ambient temperature in winter. The product adopts the principle of compressor refrigeration to remove the moisture in the gas to be measured, so that the sample gas is kept at a low dew point. The condenser can reduce the loss of components in the sample gas (such as sulfur dioxide, ammonia, etc.) and improve the accuracy of measurement. At the same time, the sample gas is prevented from condensing and corroding inside the analyzer to protect the analytical instrument. It is the most critical component in gas pretreatment system. Widely used in pollution source emission monitoring, flue gas heavy metal online monitoring, desulfurization and denitrification monitoring, waste incineration flue gas emission monitoring, volatile organic compounds (VOC) monitoring, biogas online monitoring and so on.
The volume is 1/4 smaller than that of ordinary compressor condenser products, and the weight is more than 5kg lighter than that of ordinary compressor condenser products. If the aluminum shell is used, the weight can be further reduced.
The efficiency is more than 4 times that of electronic refrigeration, and the power consumption is only 1/4 of that of electronic refrigeration. Suitable for large gas flow applications.
Under the premise of ensuring the outlet dew point temperature of 0~4° C (can be set), the gas flow can reach 8L/min, which is more than 4 times that of common products on the market. Large cooling capacity design.
Specially optimized condensing tubes provide very short contact time between water and gas to minimize subsequent test errors and adapt to low concentration monitoring. High reliability and security.
Environmentally friendly refrigerant, free of FCKW, non-combustible and non-toxic.
Adopt imported brand controller, compressor, key components are mature parts.
Product development has undergone a series of reliability and safety tests.
