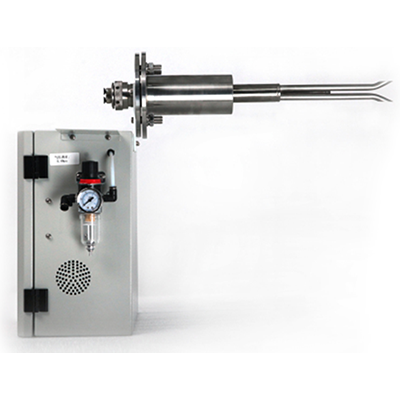

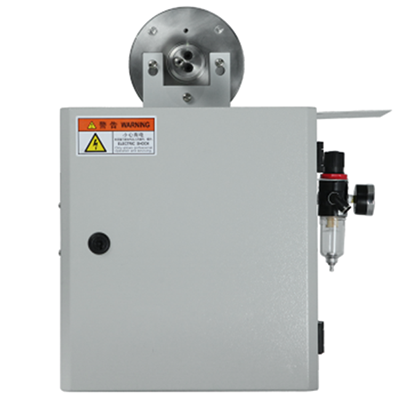

Split type integrated temperature, pressure and flow monitor

SKA/ CIMS-WYL-A split integrated temperature, pressure and flow monitor is A kin

Velocity of flow: 0~15.5m/s,0~40m/s (customizable)
temperature: 0~300℃，0~800℃
stress: -10kPa~+10kPa (customizable)
Measurement accuracy: ± 2%F.S.
Response time: < 1s (T90 )
Output signal: 3 isolation channels 4-20mA, 1 RS485, 1 RS232
Pitot tube material: 316L Stainless steel, PTFE, ceramic (optional)

Send email to us

Description

Product Tags

SKA/ CIMS-WYL-A split integrated temperature, pressure and flow monitor is A kind of integrated temperature, pressure and flow monitor specially developed by Shenzhen Shengkaian Technology for low flow conditions (1m/s~5m/s). The instrument adopts high precision differential pressure/static pressure sensor and unique pitot tube structure design, combined with automatic calibration and automatic blowback technology, can be widely used in various flue gas temperature, pressure, velocity and flow real-time continuous measurement occasions.

Low range temperature and pressure flow using ultra-high precision differential pressure sensor for 1/s low flow rate measurement.

With LCD operation unit, provide a good interpersonal interface.

Reverse blowing zero time interval, pitot tube coefficient can be set.

Overvoltage protection, effectively avoid pressure sensor damage, reduce operating costs.

Enhanced output signal protection.
