NOx analyzer

When using the combustion treatment process of volatile organic compounds, due t

linearity: ≤1.5%F.S.
repeatability: 0.5%
Zero drift: ≤±2%F.S./7d
Sample gas flow requirements: Range: (0.5~2)L/min, fluctuation: <25%
Response time: <30s

Send email to us

Description

Product Tags

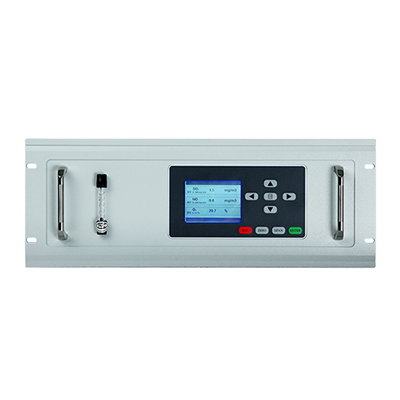

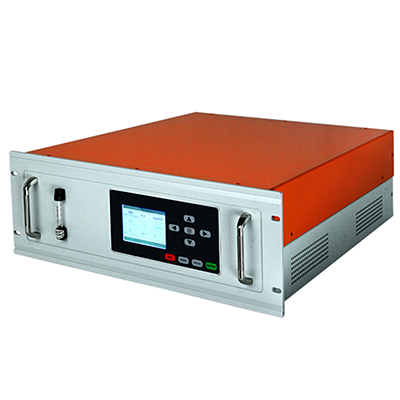

When using the combustion treatment process of volatile organic compounds, due to the continuous high temperature of the combustion furnace, N2 and O2 react to produce NO, and the conversion efficiency continues to increase with the increase of temperature, so it is necessary to monitor the NOx concentration at the same time. Our SKA/ EMS-FXY-C NOx analyzer is based on ultraviolet absorption spectroscopy (DOAS) and stoichiometric algorithms, and can detect SO2, NO, NO2 and other substances.

Through the experiment and the improvement of technique and algorithm, the absorption interference of volatile organic compounds on ultraviolet spectrum is avoided.

Simultaneous measurement of NO and NO2 without additional converters.

Can measure 0~100oom stroke low Ng
