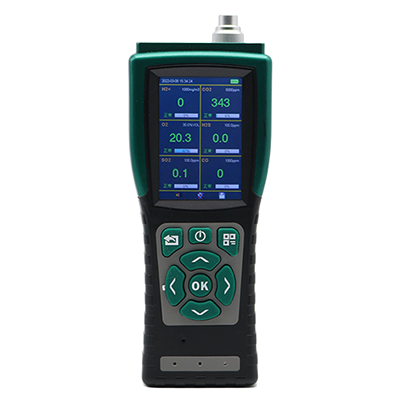

Pump type gas detector
The SKA/NE-503 portable all-in-one gas detection and alarm instrument is used for rapid detection of various gas concentrations and temperature and humidity measurements and excessive alarm occasions. SKA/NE-503 composite multi-one gas detector adopts 3.5 HD color screen to display the concentration in real time, the selection of well-known brands of gas sensors, the main detection principles are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PD photoion advanced circuit design mature core algorithm processing, has obtained a number of software patents and appearance patents. The SKA/NE-503 can detect gas concentrations in pipes or confined Spaces, atmospheric environments, gas leaks or high concentration single gas purity of various background gases nitrogen or oxygen, and can detect more than 500 types of gases.
1. Adopt imported high-precision sensor
2, the use of high-precision low-temperature bleaching amplifier and stable power processing circuit
3, TFT3.5 full-color display, graphic menu, Chinese and English display, providing real-time detection
4. Trend analysis chart
5, data storage function, can store 200,000 sets of data, storage interval is adjustable:
6, USB interface high-speed data transmission, can download and print data:
7, built-in long life imported micro sampling pump, through the gear adjustment cleaning gas path
8, meet the explosion-proof certification, explosion-proof grade: Exial CT4;
9. The shell two-color mold is non-slip, waterproof and dustproof;
10, pumping detection mode: divided into three gears, low, medium and high grade;
11, monitor the concentration of gas in the environment or confined space and alarm;
12, with self-calibration function, zero calibration function, multi-point calibration function;
13, with temperature and pressure compensation, it can perfectly achieve the compensation of gas concentration under different temperature and pressure environments:
14, one-click restore factory Settings function, you can avoid the trouble of misoperation:
15, gas concentration unit PPM,mg/m can be quickly switched display;
16, with self-programming function, you can set alarm parameters, STEL and TWA function parameters;
17, there are two detection modes: normal detection mode and patrol mode; 18, the detection gas path has automatic cleaning function, automatic prompt instrument failure, sensor calibration expired and failure function, the detection of the maximum value, STEL, TWA and concentration value real-time display characteristics.
