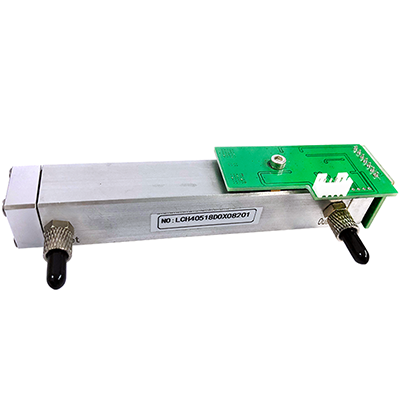

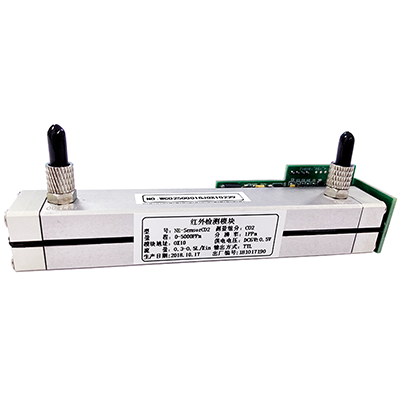

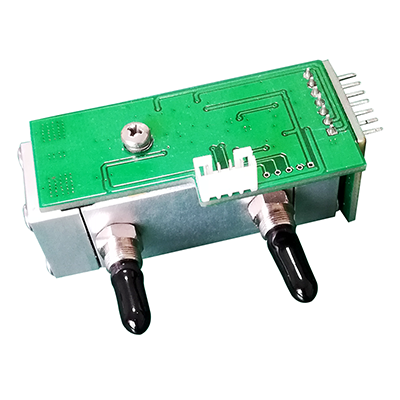

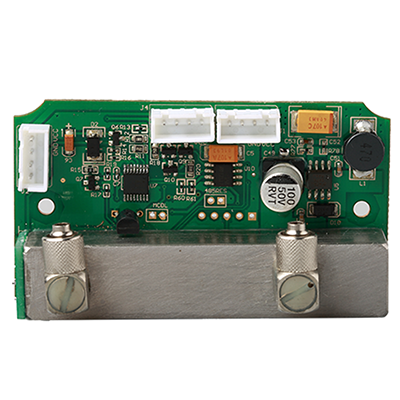

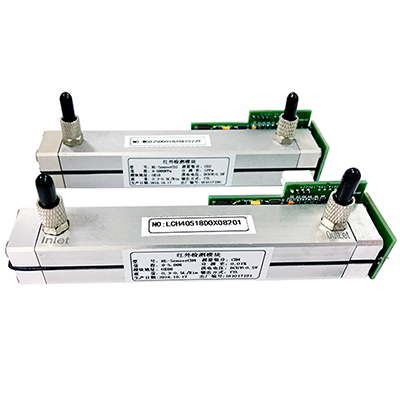

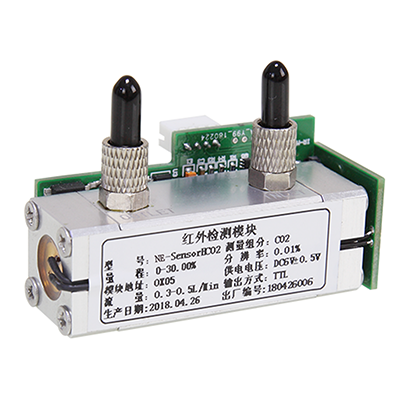

Infrared gas sensor module
The NE-101 series high-precision infrared gas sensor developed and produced by Shengjian Technology is a gas sensor module using NDR infrared absorption detection principle. The sensor adopts imported light source, optical cavity with special structure and dual-channel detector to realize spatial dual-optical path reference compensation, and the microprocessor to collect, process and output the signal. The linear error is better than 1% of the full-scale taxi, the zero drift is small, and has good selectivity, high sensitivity, no oxygen dependence, long life and low power consumption. Built-in temperature sensor for temperature compensation; Also has 4-20mA/0.4-2V, UART, Modbus(user optional) output; The alarm point can be set and can be easily and quickly connected to the existing monitoring and control system for the convenience of customers for various applications.
NDIR Infrared measurement principle
Single light source, double beam
Digital signal processing
Automatic temperature compensation
4-20mA/0.4-2V, UART, Modbus multiple signal output options
Imported components, stable performance, small fluctuation
Long life, automatic zero calibration
Multi-point calibration, good linearity in the range
Gas type, range and precision level can be customized according to user requirements
