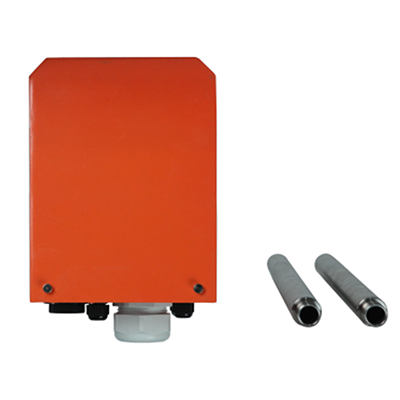

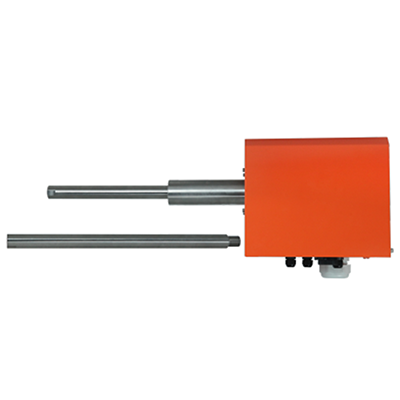

Sampling probe (conventional)

SKA/ CIMS-CY-A sampling probe (conventional) adopts A special design to enable i


  • Sampling temperature: ≤600℃
  • Heating temperature: 120℃±10℃
  • Filtration accuracy: 2μm
  • Temperature control accuracy: ±0.5℃
  • Operating temperature: -10℃~+60℃
  • Insulation strength: GB 6587.7
  • Blowback air source: (0.4 ~ 0.8) MPa nitrogen, clean instrument air

Description

Product Tags

SKA/ CIMS-CY-A sampling probe (conventional) adopts A special design to enable it to be applied to a variety of working conditions (high temperature, high humidity, high dust, high corrosion, etc.), can be used in support of a variety of sampling tubes, filters, heating units, etc., with a large filtration area and capacity. The system has the characteristics of good air tightness, high filtration accuracy, patented anti-leakage powder design, extremely low gas resistance, etc. High temperature control precision, temperature overload protection function, reliable operation and fast response, easy installation and maintenance. The SKA/ CIMS-CY-A type sampling probe (conventional) is suitable for the continuous collection of exhaust gas samples after the combustion process, and is typically used for the collection of high dust and water content gas samples such as power plant flue and cement production process.

The filter is made of ceramic material, which has high corrosion resistance under high humidity, high temperature and high dust environment.

The special internal structure design effectively reduces the dead zone space of the sample gas;

Filter dust particles above 2μm, small gas resistance;

Efficient internal and external blowback structure design, effectively remove dust, avoid clogging, reduce daily maintenance.
