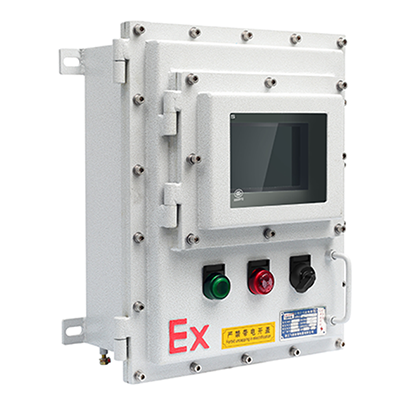

Explosion-proof gas analyzer
The SKA/EX-8100A explosion-proof gas analyzer is in accordance with GB3836.1-2010 Explosive Environments Part 1: Equipment General requirements ", "GB3836.2-2010 Explosive environment Part 2 Equipment protected by flameproof shell" d "" made of flameproof analyzer, the explosion-proof mark is Exd II CT6Gb. It is suitable for the factory where there is or may be Sichuan A, Sichuan B, Sichuan C class, T1-T6 group combustible gas, vapor and air mixed to form explosion hazard zone 1 or Zone 2. SKA/EX-8100A type explosion-proof gas analyzer starts from the strength of the shell and the joint surface gap, length and maximum surface temperature of the components of the shell, and uses isolation measures to isolate the circuit and the surrounding environment, and limits the electrical spark and high temperature formed during the fault in the sealed shell to prevent the flammable and explosive gases in the surrounding environment from ignitement.
Adopt imported high-precision gas sensor;
Primary pretreatment system composed of built-in flow meter and dust filter;
Explosion-proof box integration, explosion-proof grade EXDe IIBT4, optional CT4,IP65;
Powerful local data storage function, can store more than three years of historical data;
Automatic test, self-test, fault alarm, screen display, result query and other functions;
Weather monitoring sensor can be selected, using solid and durable ultrasonic principle design;
Modbus communication can be connected to the host computer, compatible with conventional control output mode;
All Chinese operation interface, can also be customized into English interface;
Pump type, S select different sampling probes can be applied to a variety of places;
Can add 4~8 kinds of monitoring factors, according to the site pollution factor selection;
Optional wireless 4G module, HJ212 protocol networking cloud platform;
The concentration unit can be PPM, VOL, LEL, mg/m3, ug/m3.
