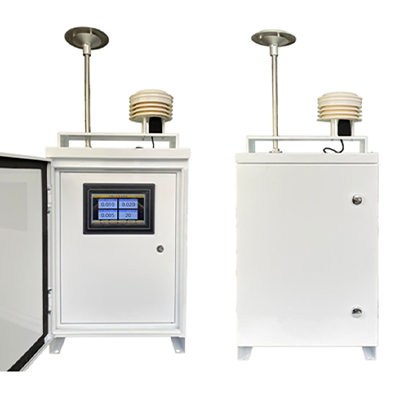

Odor on-line analyzer
The on-line odor monitoring system is an instrument for on-line odor monitoring. Factors that can be monitored include: Ammonia, hydrogen sulfide, trimethylamine, methylmertan, methyl sulfide, dimethyl disulfide, carbon disulfide and styrene and odor intensity, can also be customized to measure TVOC, CL2, HCL, benzene, methylamine, toluene, DMSO, dimethylamine, xylene, acetic acid, DMF, naphthalene, formaldehyde, acetaldehyde, pyridine, phenol, p-xylene and other pollution sources. The system is based on sensor detection technology, and the equipment is designed based on photoionization detection, electrochemical principle and semiconductor principle, which can meet the requirements of the national standard GB14554-1993 "Odor pollutant Emission Standard". The unique cross interference algorithm model and neural network algorithm model can test the odor intensity of composite gas. Using PCA and other algorithm technology to realize the composition analysis of pollutants to trace the source. At the same time, instrument remote control and data query can be carried out through mobile phone APP or platform, which is suitable for spot monitoring of pollution sources in industrial parks.
Configure touch display, you can view real-time concentration, historical data, alarm information;
Using deep condensation water removal, multi-stage dust removal to remove the interference caused by humidity;
Fast response speed, using 32-bit high-speed processing core chip;
The zero point and range calibration can be carried out through the instrument operating system, and the operation is simple and convenient.
Equipment maintenance is simple, the instruments are using our independent research and development of intelligent sensors, can be directly inserted and removed, intelligent identification of gas components;
Friendly man-machine interface, equipment configuration 7 inch industrial touch color screen, equipment detection data at a glance;
Historical data query is convenient, you can enter the date you need to query the data, and accurately find the historical data of the day in the massive data;
The touch screen can store more than three years of data inside.
