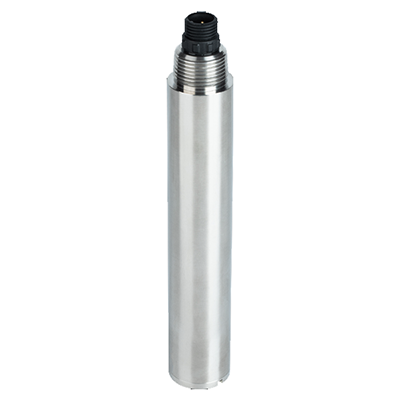

Intelligent sludge concentration sensor

AMTMWN-400 intelligent sludge concentration sensor is an intelligent sensor usin

Measurement principle: Scattered light method
Range range: 0~20.000g/L
Resolution: 0.001g/L,0.1℃
precision: ±5% (depending on sludge homogeneity)
Calibration mode: Two-point calibration
Temperature compensation: Automatic Temperature Compensation (Pt1000)

Send email to us

Description

Product Tags

AMTMWN-400 intelligent sludge concentration sensor is an intelligent sensor using RS485 communication interface and standard Modbus protocol. It is designed and manufactured by the principle of scattering light measurement method. When a beam is shot into the water sample, the light is scattered by the suspended particles in the water sample. By measuring the intensity of the backscattered light and comparing it with the internal calibration value, the sludge concentration in the water sample is calculated, and the final value is output after linearization.

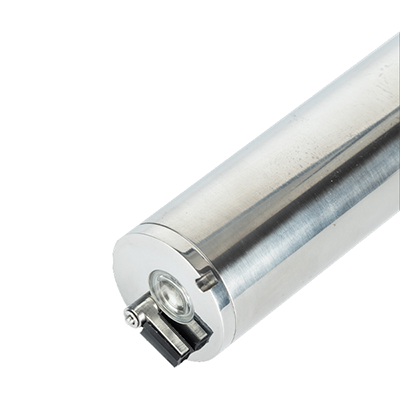

With self-cleaning function, remove attachments in water samples;

Digital modulation filter technology to eliminate the influence of ambient light;

Bubble compensation algorithm can reduce bubble interference in water sample;

Long life infrared LED light source, up to more than 10 years;

PT1000 temperature compensation, accuracy up to ±0.1℃;

Corrosion-resistant shell, waterproof grade P68, can work underwater for a long time;

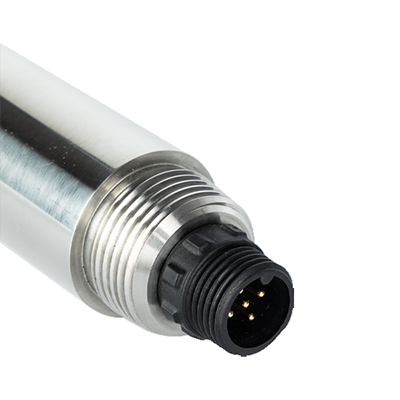

RS485 pass meter interface, standard Modbus protocol, easy to integrate.
