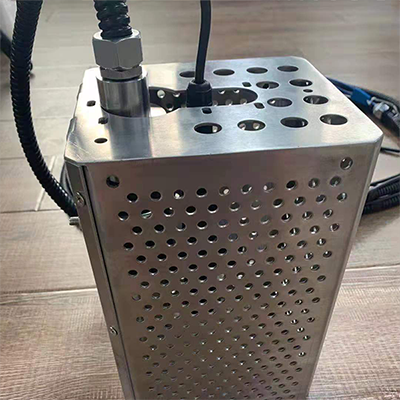

Full spectrum water quality sensor

AMT/QGP-400 full-spectrum water quality sensor can quickly measure the UV-visibl

illuminant: Scintillation xenon light source, theoretical life of 5 years
Resolution: ±1%F.S.
precision: ±10%
Response time: Less than 10s
Optical path length: 1mm、2mm、5mm、20mm、35mmOptical path is optional and variable
Detection parameter: COD、BOD、TOC、DOC、NO3-N、Turbidity/suspended solids、O3

Send email to us

Description

Product Tags

AMT/QGP-400 full-spectrum water quality sensor can quickly measure the UV-visible full-wavelength absorption spectrum of water body in real time, analyze the spectral absorption characteristics of each substance to be tested, combine the water quality model algorithm and model calibration parameters, and can synchronously and quickly measure the: COD, DOC, TOC, nitrate nitrogen, chroma, turbidity, TSS, temperature, O3, residual chlorine and UV254 and other parameters, to achieve multi-parameter integration and water quality detection real-time, fast, automated, portable. The determination process is carried out in situ in the water body and does not require pretreatment or consumption of any reagents.

Based on the full spectrum absorption method, no reagents, no secondary pollution;

Simultaneous measurement of COD, TOC, nitrate nitrogen, chroma, turbidity and other parameters;

The measurement time is less than 5 seconds, which can quickly reflect the change of water body;

Dual beam measurement system, automatic compensation of light source changes;

Pulsed xenon lamp source, life of more than 10 years;

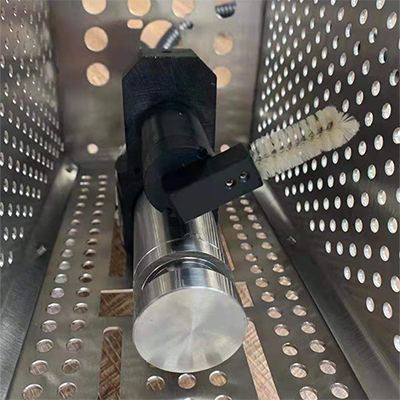

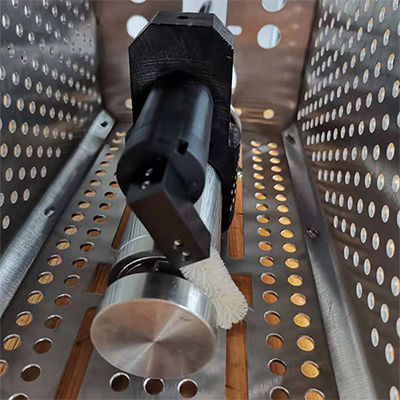

With cleaning brush, avoid window pollution, no compressed air;

Submersible installation, almost zero operating costs and maintenance.
