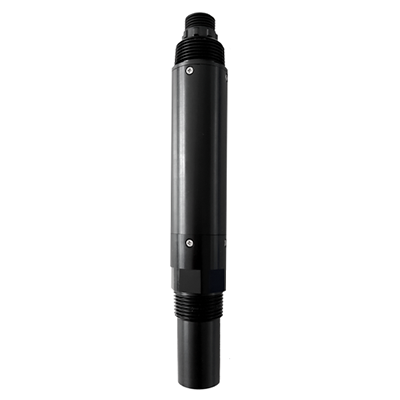

Intelligent Conductivity Sensor (Seawater)

The AMT/ DCL-400 intelligent conductivity sensor (seawater) is a smart sensor wi

Measurement principle: Graphite electrode method
Range range: 0~20.00、200.0、5000uS/cm、0~200.0mS/cm
Resolution: 0.01、0.1、1、0.1
precision: ±1.5%F.S.,±0.3℃
Operating temperature: 0~65℃
Working pressure: <0.6MPa
Power supply: 12~24VDC

Send email to us

Description

Product Tags

The AMT/ DCL-400 intelligent conductivity sensor (seawater) is a smart sensor with RS485 communication interface and standard Modbus protocol. Available for low, medium and high range conductivity measurement, electrode constant from 0.1 to 250p×-1, electrode materials are graphite, platinum stainless steel, can measure conductance, TDS, salinity. Corrosion resistant housing, built-in PT1000 temperature sensor and compensation algorithm, suitable for all kinds of harsh working environment.

Precise electrode design, high accuracy, good linearity, wide range;

Electrode constant is very stable, not affected by polarization;

Automatic compensation of surface contact resistance, not affected by contamination;

PT1000 temperature compensation, accuracy up to ±0.1℃;

RS485 communication interface, standard Modbus protocol, easy to integrate;

Corrosion-resistant housing, waterproof class P68, can work underwater for a long time.
